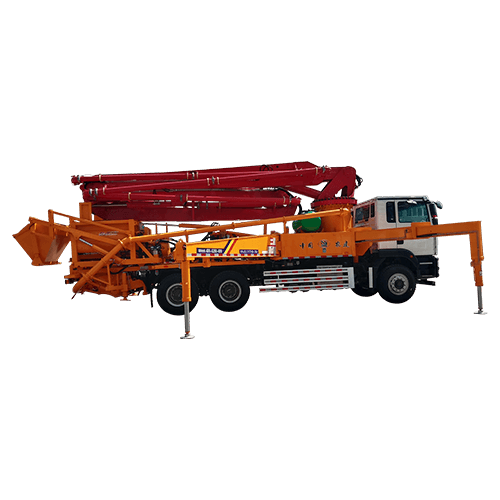

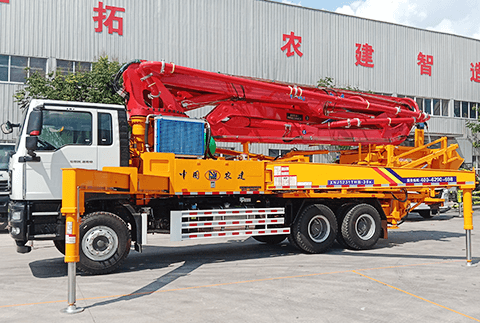

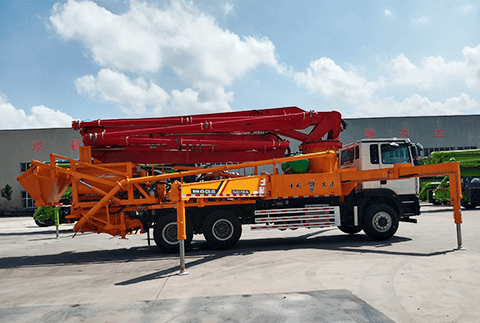

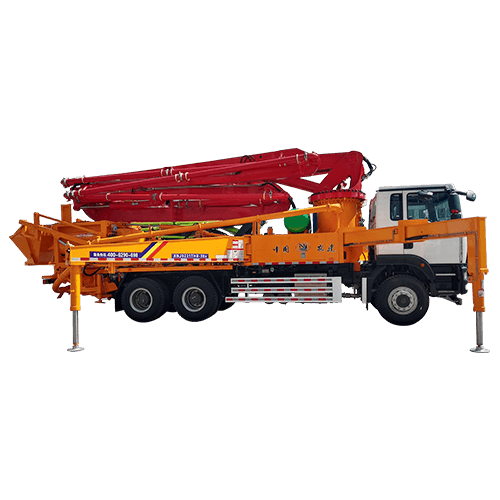

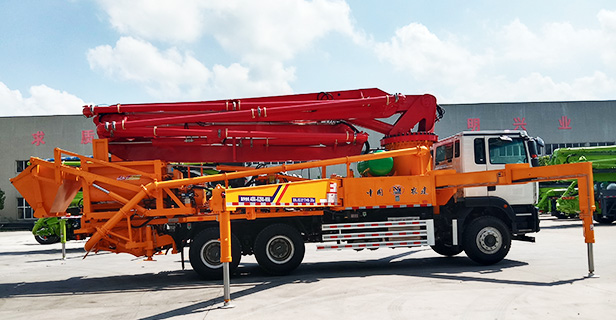

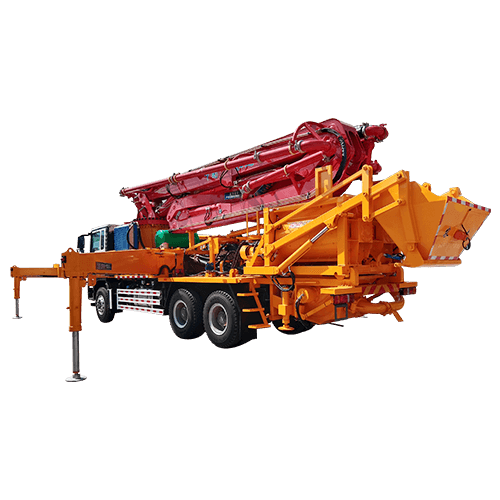

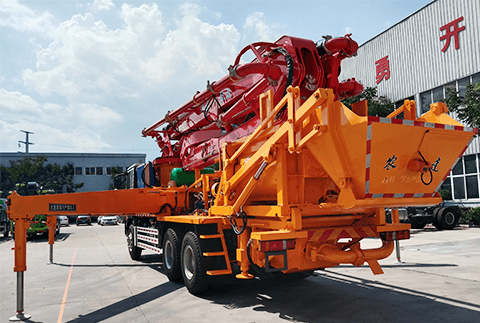

Nongjian 38 M Self Loading Mixer Truck is an integrated truck of concrete mixing and pumping.Two options of mixing type:fully hydraulic or electric motor,adjust to different customers.
Accept customization of different truck chassis,more flexible.
| GENERAL | |
| Dimension(L*W*H) | 11000mm*2500mm*4000mm |
| Total Weight | 32000Kg |
| Max Vertical Reach | 38m |
| Max Herizontal Reach | 33.2m |
| Max Reach Depth | 22.6m |
| Outrigger Span:Front/Rear /Front-Rear |
6800mm*8000mm*6500mm |
| Hydraulic System | Open |
| Chaasi Brand | SITRAK/Customization |
| Remote Control | HBC/OHM/TECHWELL |
| Hydraulic Oil Tank Capacity | 500L |
| Water Tank Capacity | 500L |
| Hopper Volume | 0.5m³ |
| BOOM | |
| Number of Booms | 5 Sections |
| Folding Type | RZ Fold |
| Outrigger | X-Swing |
| Boom Rotation Angle | 90°/180°/180°229°/212° |
| 1st Section | 7500mm |
| 2st Section | 6200mm |
| 3st Section | 6100mm |
| 4st Section | 6700mm |
| 5st Section | 6700mm |
| Turntable Rotation Angle | ±360° |
| Boom Multi-way Valve | HAWE/KMAN/NORMA |
| Pump | |
| Theoretical Output | 120m³/h |
| Theoretical Pumping Pressure | 8-12Mpa |
| Theoretical Pumping Times | 25-40 times/min |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Theoretical Mixing Speed | ≥30m³/h |
| Model Of Mixer | JS750 |
| Main Hydraulic Oil Pump Displacement |
190ml/r |
| Main Hydraulic Oil Pump Theoretical Presure |
32Mpa |
| Delivery Pumping Cylinder External Diameter |
230mm |
| Delivery Cylinder Stroke |
1600mm |
| Concrete Pipe Diameter | 125mm |
