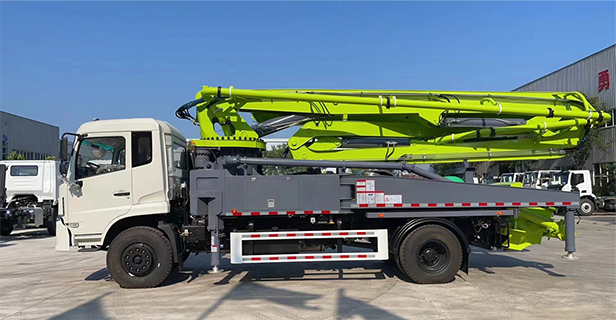

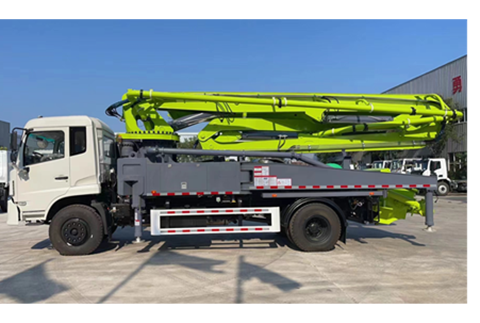

Nongjian 37M Concrete Pump Truck,is our patent product,mounted with 270 horse power chassis,two axles.Short wheel base of 4600mm,tiny whole machine,easy to go through narrow channels ,can do construction project of 2 floors,very suitable for rural construction.
| GENERAL | |
| Dimension(L*W*H) | 10500mm*2500mm*3850mm |
| Total Weight | 25000Kg |
| Max Vertical Reach | 37m |
| Max Herizontal Reach | 34m |
| Max Reach Depth | 22m |
| Outrigger Span:Front/Rear /Front-Rear |
6800mm*8350mm*6800mm |
| Hydraulic System | Open |
| Chaasi Brand | Dongfeng/Customization |
| Remote Control | HBC/OHM/TECHWELL |
| Hydraulic Oil Tank Capacity | 500L |
| Water Tank Capacity | 500L |
| Hopper Volume | 0.5m³ |
| BOOM | |
| Number of Booms | 5 Sections |
| Folding Type | RZ Fold |
| Outrigger | X-Swing |
| Boom Rotation Angle | 90°/180°/180°/207°/211° |
| 1st Section | 7500mm |
| 2st Section | 6500mm |
| 3st Section | 6300mm |
| 4st Section | 6800mm |
| 5st Section | 7000mm |
| Turntable Rotation Angle | ±360° |
| End Hose Length | 3 M |
| Concrete slump | 160-220mm |
| Pump | |
| Theoretical Output | 130m³/h |
| Theoretical Pumping Pressure | 8-12Mpa |
| Theoretical Pumping Times | 25-40 times/min |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Main Hydraulic Oil Pump Displacement |
190ml/r |
| Main Hydraulic Oil Pump Theoretical Presure |
32Mpa |
| Delivery Pumping Cylinder External Diameter |
230mm |
| Delivery Cylinder Stroke |
2100mm |
| Concrete Pipe Diameter | 125mm |
