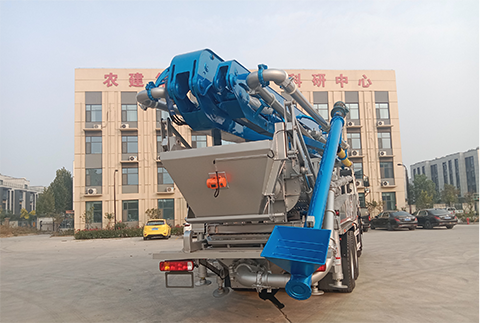

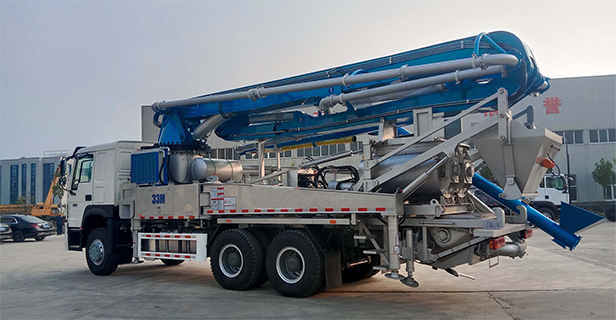

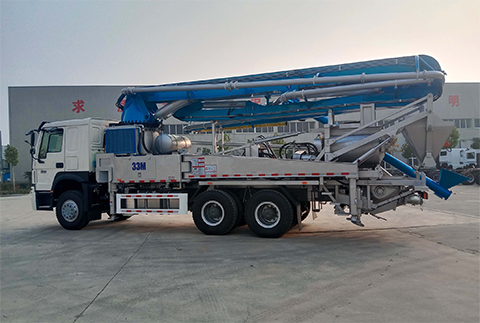

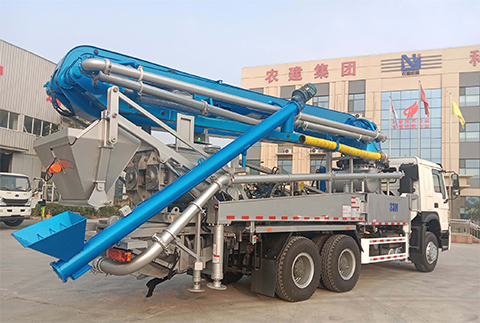

Nongjian 33 M Self Loading Mixer Truck is an integrated truck of concrete mixing and pumping.Two options of mixing type:fully hydraulic or electric motor,adjust to different customers.
Accept customization of different truck chassis,more flexible.
| GENERAL | |
| Dimension(L*W*H) | 1085mm*2500mm*3950mm |
| Total Weight | 29000Kg |
| Max Vertical Reach | 33m |
| Max Herizontal Reach | 29.2m |
| Max Reach Depth | 17.6m |
| Outrigger Span:Front/Rear /Front-Rear |
5800mm*8350mm*6800mm |
| Hydraulic System | Open |
| Chaasi Brand | HOWO/Customization |
| Remote Control | HBC/OHM/TECHWELL |
| Hydraulic Oil Tank Capacity | 500L |
| Water Tank Capacity | 500L |
| Hopper Volume | 0.6m³ |
| BOOM | |
| Number of Booms | 4 Sections |
| Folding Type | RZ Fold |
| Outrigger | X-Swing |
| Boom Rotation Angle | 90°/180°/180°/212° |
| 1st Section | 7850mm |
| 2st Section | 7050mm |
| 3st Section | 7050mm |
| 4st Section | 7200mm |
| Turntable Rotation Angle | ±360° |
| Boom Multi-way Valve | HAWE/KMAN/NORMA |
| Pump | |
| Theoretical Output | 140m³/h |
| Theoretical Mixing Speed | ≥30m³/h |
| Theoretical Pumping Times | 25-40 times/min |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Main Hydraulic Oil Pump Displacement |
190ml/r |
| Main Hydraulic Oil Pump Theoretical Presure |
32Mpa |
| Delivery Pumping Cylinder External Diameter |
230mm |
| Delivery Cylinder Stroke |
1450mm |
| Concrete Pipe Diameter | 125mm |
