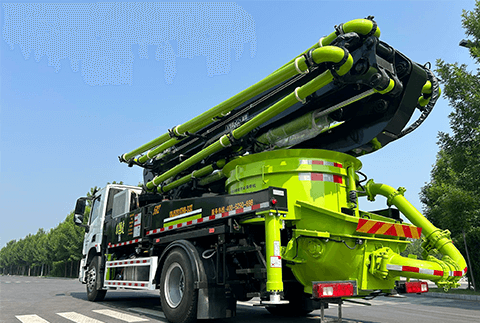

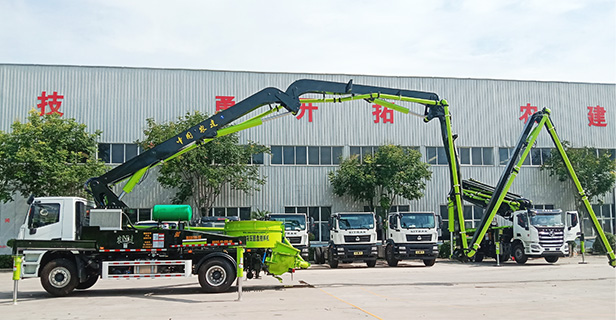

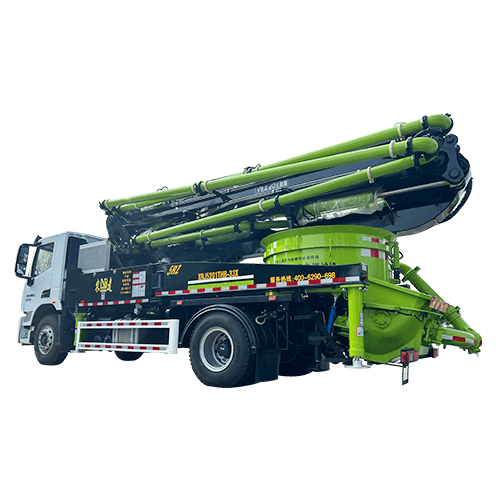

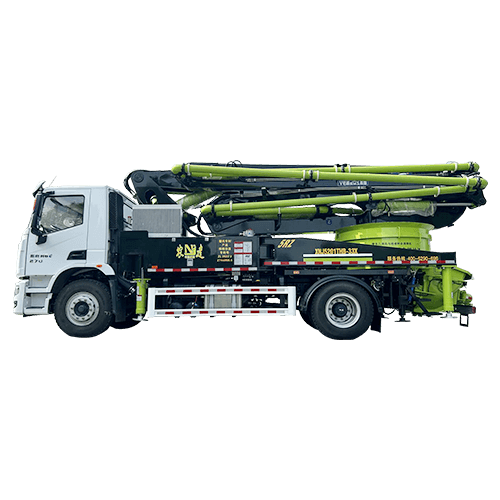

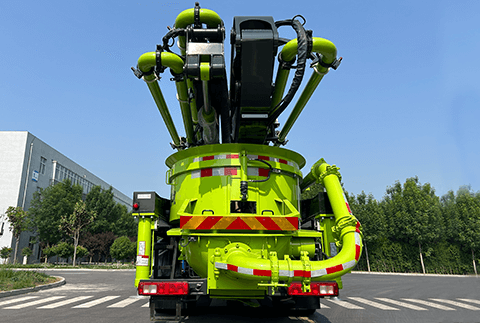

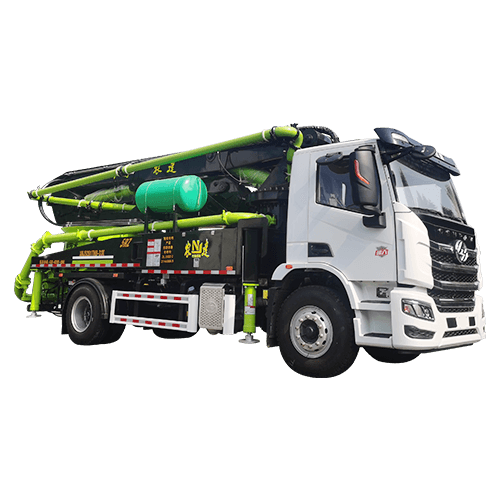

Nongjian 33 M Round Container Mixer Truck is invented by our engineer team in 2020.It is an integrated multi-functional truck ,combine mixing and pumping function together,realizes the whole chain operation from raw materials to pumping construction,get ride of the cost of commercial concrete .Can be called as a movable batching plant.Later we invented the second-mixing patent technology,more efficient and faster on mixing.
| GENERAL | |
| Dimension(L*W*H) | 9000mm*2350mm*3400mm |
| Total Weight | 20000Kg |
| Max Vertical Reach | 33m |
| Max Herizontal Reach | 28.9m |
| Max Reach Depth | 22m |
| Outrigger Span:Front/Rear /Front-Rear |
5700mm*6800mm*5900mm |
| Hydraulic System | Open |
| Chaasi Brand | Hongyan/Customization |
| Remote Control | HBC/OHM/TECHWELL |
| Hydraulic Oil Tank Capacity | 500L |
| Water Tank Capacity | 500L |
| Hopper Volume | 0.6m³/Customization |
| BOOM | |
| Number of Booms | 5 Sections |
| Folding Type | RZ Fold |
| Outrigger | X-Swing |
| Boom Rotation Angle | 90°/180°/180°/212°/180° |
| 1st Section | 64000mm |
| 2st Section | 5000mm |
| 3st Section | 4800mm |
| 4st Section | 6250mm |
| 5st Section | 6450mm |
| Turntable Rotation Angle | ±360° |
| End Hose Length | 3 M |
| Concrete slump | 160-220mm |
| Pump | |
| Theoretical Output | 120m³/h |
| Theoretical Mixing Speed | ≥30m³/h |
| Theoretical Pumping Times | 25-40 times/min |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Main Hydraulic Oil Pump Displacement |
190ml/r |
| Main Hydraulic Oil Pump Theoretical Presure |
32Mpa |
| Delivery Pumping Cylinder External Diameter |
230mm |
| Delivery Cylinder Stroke |
1600mm |
| Concrete Pipe Diameter | 125mm |
