26M Concrete Pump Truck

Nongjian 26 M Concrete Pump Truck,is our patent product,mounted with 270 horse power chassis,two axles.Short wheel base of 4600mm,tiny whole machine,easy to go through narrow channels ,can do construction project of 2 floors,very suitable for rural construction.

26M Concrete Pump Truck

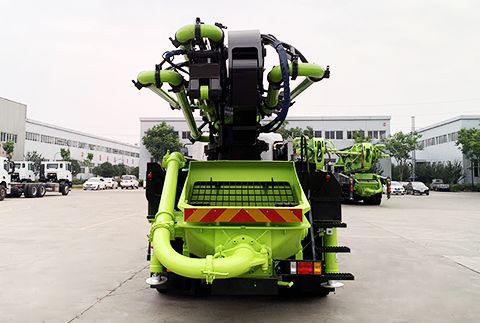

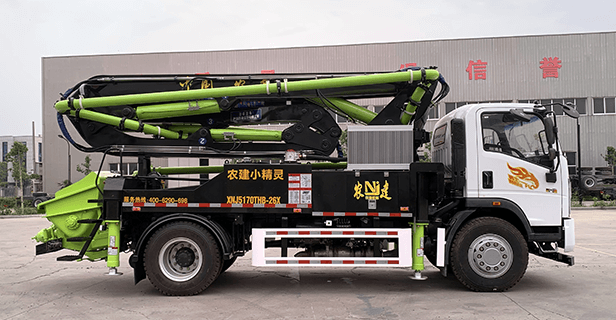

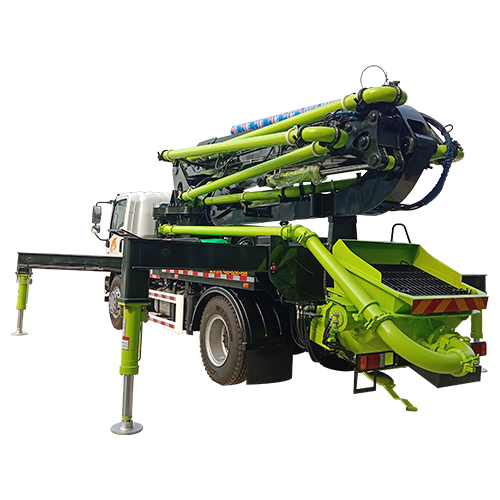

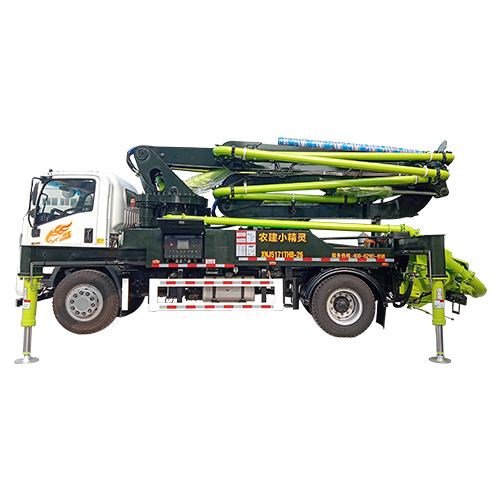

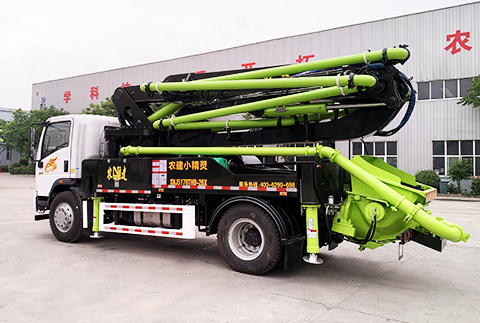

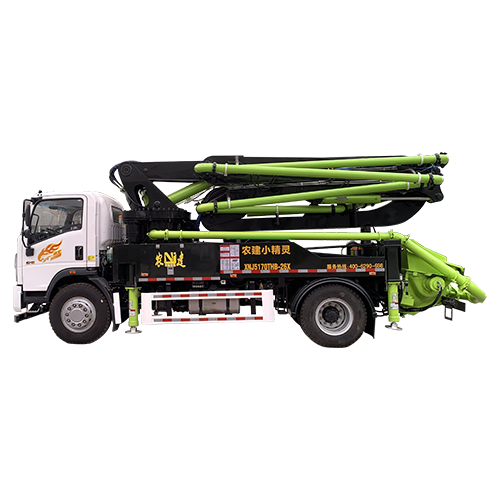

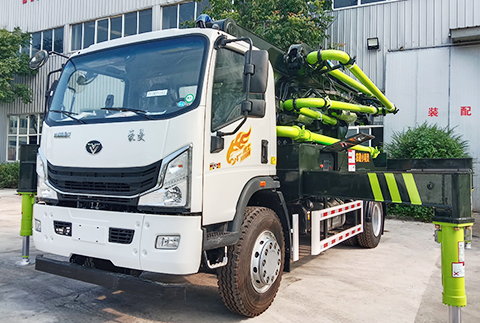

Detailed Image

Parameters

        GENERAL
Dimension(L*W*H) 8200mm*2500mm*3360mm
Total Weight 18000Kg
Max Vertical Reach 26m
Max Herizontal Reach 21.6m
Max Reach Depth 10.5m
Outrigger Span:Front/Rear
/Front-Rear
5470mm*5140mm*5710mm
Hydraulic System Open
Chaasi Brand  HAOMAN/Customization
Remote Control HBC/OHM/TECHWELL
Hydraulic Oil Tank Capacity 500L
Water Tank Capacity 500L
Hopper Volume 0.5m³/0.6m³/Customization
       BOOM
Number of Booms 5 Sections
Folding Type  RZ Fold
Outrigger X-Swing
Boom Rotation Angle 90°/180°/180°/212°/180°
1st Section 5500mm
2st Section 4100mm
3st Section 3900mm
4st Section 3900mm
5st Section 4300mm
Turntable Rotation Angle ±360°
Boom Multi-way Valve HAWE/KMAN/NORMA
          Pump
Theoretical Output 80m³/h
Theoretical Pumping Pressure 8-12Mpa
Theoretical Pumping Times 25-40 times/min
Main Hydraulic Oil Pump Brand Rexroth
High And Low Pressure Switch Automatic
Max Aggregate Size 40mm
Main Hydraulic Oil Pump
Displacement
190ml/r
Main Hydraulic Oil Pump
Theoretical Presure
32Mpa
Delivery Pumping Cylinder
External Diameter
200mm
Delivery  Cylinder
Stroke
1450mm
Concrete Pipe Diameter 125mm

Advantages

  • Short and tiny,suitable for narrow construction sites.
  • Fully hydraulic system,easy to obtain the skills of operation
  • Characterized by large engineering applicability, high degree of automation
  • Reduced labor intensity, increased efficiency, and reduced costs.
